Adaptor | Yamaha | PA-150B
LE 1,250.00

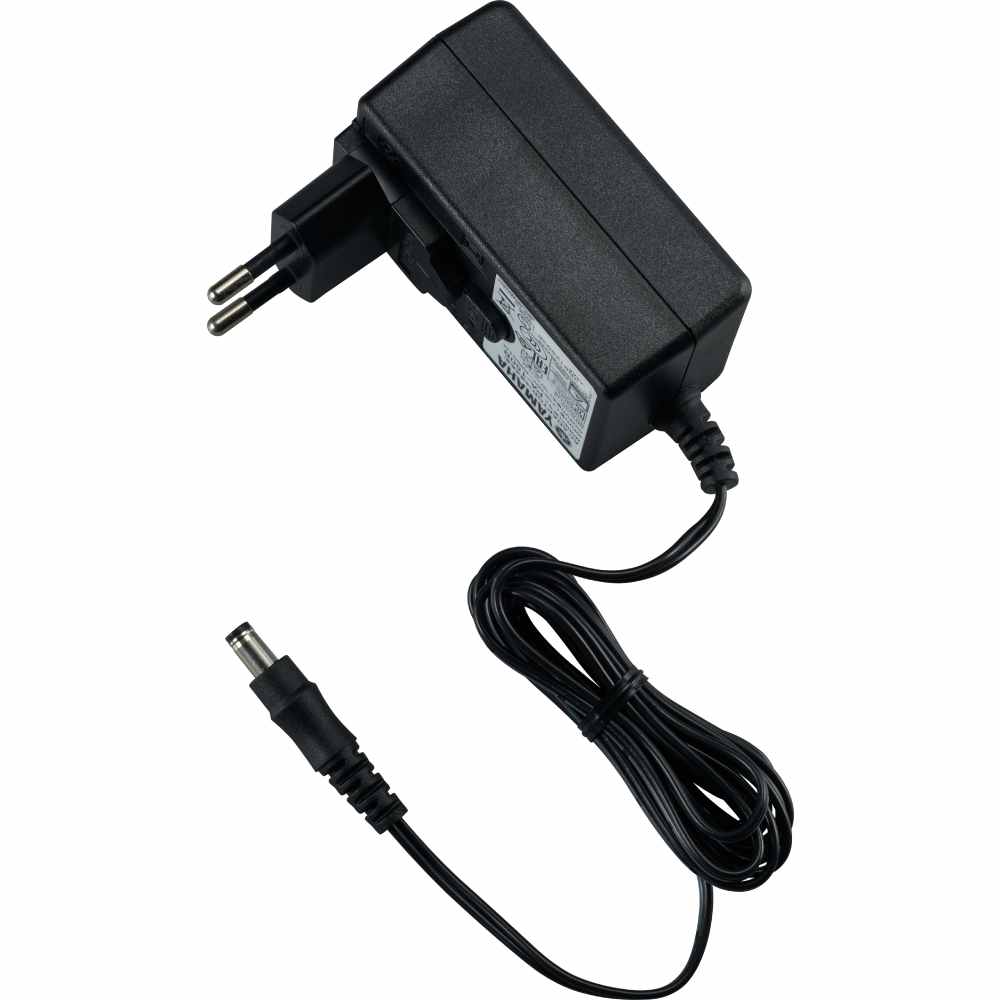

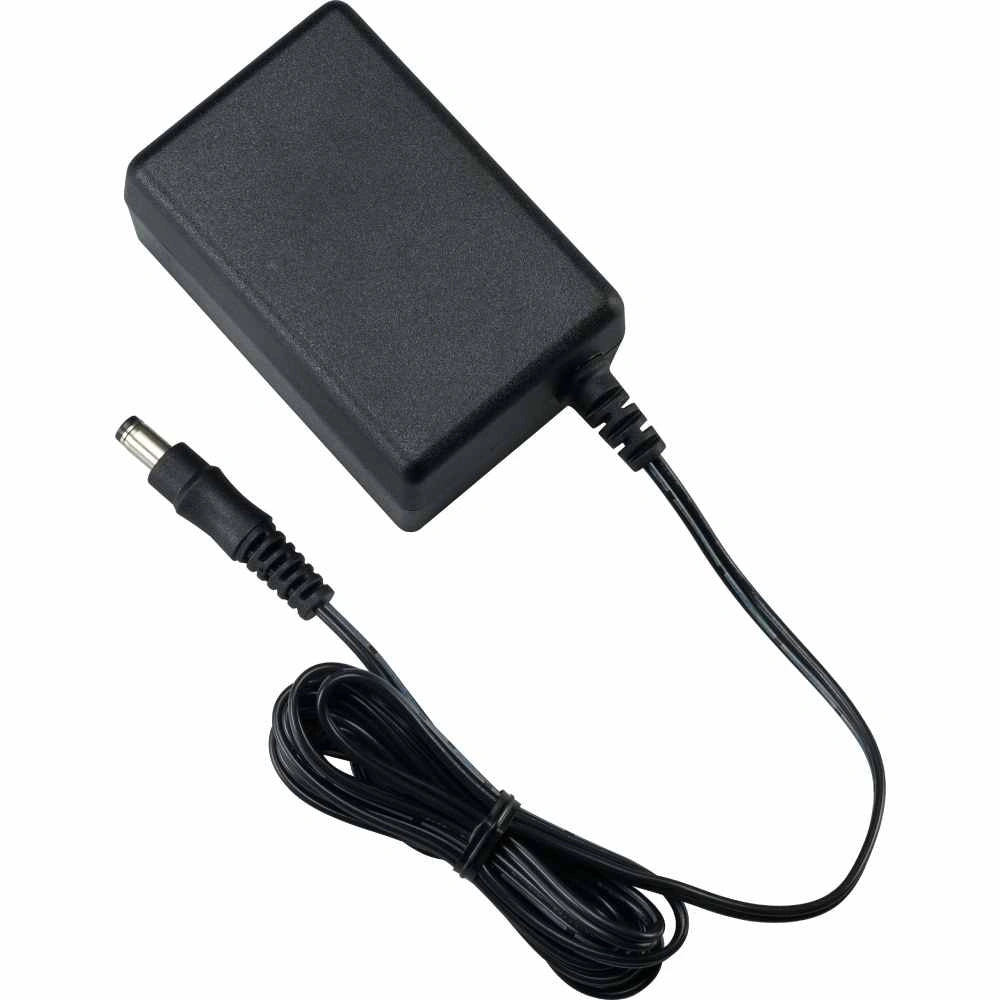

The Yamaha PA-150B is an AC power adapter that provides 12V DC output at 1.5A with a center-positive polarity, designed for various Yamaha musical instruments.
Key Specifications
According to official Yamaha and retailer specifications, the PA-150B has the following technical details:
- Input: AC 100-240 V (50/60 Hz), 0.5 A
- Output: DC 12 V, 1.5 A
- Polarity: Center/Tip Positive (+)
- Connector: Barrel plug (5.5 mm outside / 2.1 mm inside)
- Weight: 170g - 185g
- Energy Efficiency: Switched-mode power supply, designed to be energy efficient
Compatibility
The PA-150B is compatible with a wide range of Yamaha musical instruments and is a replacement for older models like the PA-150, PA-5D, KPA6, and EPA6.
- P Series Digital Pianos: Including the Yamaha P-35, P-45, P-85, P-105, P-125, etc.
- DGX Series Digital Pianos: Such as the Yamaha DGX-650, DGX-660, DGX-230, etc.
- PSR-E Series Keyboards: Compatible with models like the Yamaha PSR-E363, PSR-E463, etc.
- Piaggero Series: Including the Yamaha NP-30, NP-31, NP-32, etc.
- Other Series: It also works with various Yamaha DD Series drum pads, MOX/MOXF synthesizers, and more.
Replacement Options
When selecting a replacement, ensure it matches the 12V output, 1.5A (or higher amperage like 2A for safety, as the device will only draw what it needs) current rating, and center-positive polarity.
- Yamaha PA-150 Power Adapter: This is the standard equivalent, often sold under slightly different regional names (PA-150, PA-150A, PA-150B).
- Custom Lynx YPS150 Replacement Yamaha PA-150B: An aftermarket option praised for its broad compatibility and robust design.
- Third-party 12V 1.5A/2A adapters: Many third-party adapters for Yamaha keyboards are available online, with built-in safety features like over-voltage and short-circuit protection
